3. Multi layer classification
데이터 소개
- fashion MNIST 데이터 사용

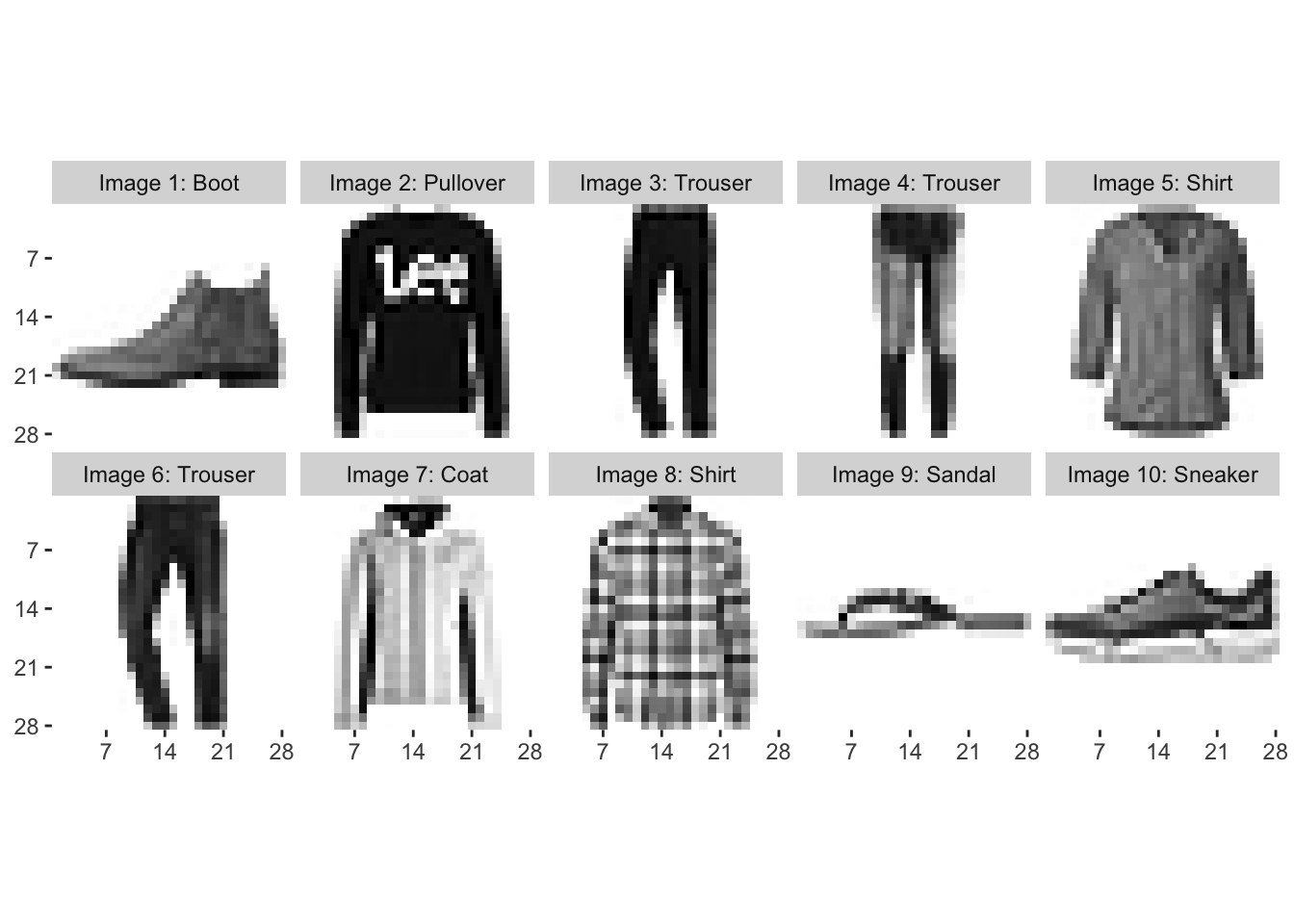

이미지는 다음과 같은 것을 보여줍니다. (a) 28 x 28의 배열에서 의류의 모습이 어떻게 모사되는지 (b) 각 0-9까지의 다양한 의류 그림의 모습들
최종 목표
전처리
1
2
3
4
5
6
7
8
"""
데이터 불러오기
"""
fashion_mnist = keras.datasets.fashion_mnist
datasets = fashion_mnist.load_data()
(train_images, train_labels), (test_images, test_labels) = datasets
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
"""
레이블 설정
https://www.kaggle.com/datasets/zalando-research/fashionmnist
"""
labels = ["T-shirt/top", # index 0
"Trouser", # index 1
"Pullover", # index 2
"Dress", # index 3
"Coat", # index 4
"Sandal", # index 5
"Shirt", # index 6
"Sneaker", # index 7
"Bag", # index 8
"Ankle boot"] # index 9
def idx2label(idx):
return labels[idx]
1
2
3
4
5
6
7
8
9
"""
이미지의 값이 가장 큰 idx와 작은 idx 출력
"""
train_images.reshape(shape = (60000, -1)).sum(axis = 1).argmax() # 55023
train_images.reshape(shape = (6000, -1)).sum(axis = 1).argmax() # 9230
train_images.reshape(shape = (60000, -1)).sum(axis = 1)[55023]
train_images.reshape(shape = (60000, -1)).sum(axis = 1)[9230]
1
2
3
4
5
6
"""
정수형 데이터를 실수형으로 변경
"""
train_images = train_images.astype(np.float64)
test_images = test_images.astype(np.float64)
\(normalize(x) = \frac{x - 최소값}{최대값 - 최소값}\) \(normalize(x) = \frac{x}{최대값}\)
1
2
3
4
5
6
7
8
9
10
11
12
"""
데이터 0-1 normalize 수행
"""
train_images = train_images / train_images.max()
test_images = test_images / test_images.max()
def norm(img):
min_val = data.min()
max_val = data.max()
return (data - min_val) / (max_val - min_val)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
"""
레이블에 따른 이미지 출력
"""
print(np.argwhere(train_labels == 9)[:5].shape) # (5, 1)
# 아래 셋은 같은 표현
print(np.argwhere(train_labels == 9)[:5].reshape(-1))
print(np.argwhere(train_labels == 9)[:5, 0])
print(np.argwhere(train_labels == 9)[:5, ..., 0])
"""
plt.imshow(train_images
[
np.argwhere(train_labels == 9)[:5, ..., 0]
].transpose(1, 0, 2).reshape(28, -1))
"""
def filter(label, count=5):
images = train_images
[
np.argwhere(train_labels == label)[:count, 0]
].transpose(1, 0, 2).reshape(28, -1)
plt.imshow(images)
plt.show()
filter(0, 3)
Data augmentation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
"""
이미지 한장의 배셩 크기를 4배로 확대하고, 객체는 4분면 영역중 랜덤으로 한 공간에 넣는 함수
"""
def expand_4times(img):
bg = np.zeros(img.shape)
idx = np.random.randint(0, 4)
slots = [bg, bg, bg, bg]
slots[idx] = img
expanded_img = np.vstack([
np.hstack(slots[:2]),
np.hstack(slots[2:])
])
return expanded_img
plt.imshow(expand_4times(train_images[0]))
plt.show()
train_expand_images = np.array([expand_4times(img) for img in train_images])
test_expand_images = np.array([expand_4times(img) for img in test_images])
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
"""
이미지 한장의 배경 크기를 4배로 확대하고, 객체를 랜덤으로 1 ~ 4개, 랜덤 4분면에 위치 시키는 함수
"""
def expand_4times2(x_data, y_data):
images = []
labels = []
for _ in range(4):
bg = np.zeros(shape = (28, 28))
obj_count = np.random.randint(0, 5)
label = np.zeros((10, ))
slots = [bg, bg, bg, bg]
for idx in range(obj_count):
i = np.random.randint(len(x_data))
slots[idx] = x_data[i]
label += tf.keras.utils.to_categorical(y_data[i], 10)
np.random.shuffle(slots)
new_img = np.vstack([
np.hstack(slots[:2]),
np.hstack(slots[2:])
])
images.append(new_img)
labels.append((label >= 1).astype(np.int8))
return np.array(images), np.array(labels)
train_multi_images, train_multi_labels = list(zip(*[
expand_4times2(train_images, train_labels) for _ in train_images]))
test_multi_images, test_multi_labels = list(zip(*[
expand_4times2(test_images, test_labels) for _ in test_images]))
print(np.array(train_multi_images).shape) # (60000, 1, 56, 56)
np.array(train_multi_images[:, 0, :, :]).shape # (60000, 56, 56)
print(np.array(train_multi_labels).shape) # (60000, 1, 10)
np.array(train_multi_labels[:, 0, :]).shape # (60000, 10)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
"""
4차원 데이터 처리
"""
# (60000, 56, 56, 1)
train_multi_images =
np.array(train_multi_images)[:, 0, :, :].reshape(-1, 56, 56 ,1)
# (60000, 10)
train_multi_labels =
np.array(train_multi_labels)[:, 0, :]
test_multi_images =
np.array(test_multi_images)[:, 0, :, :].reshape(-1, 56, 56 ,1)
test_multi_labels =
np.array(test_multi_labels)[:, 0, :]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
"""
의류 갯수에 따라 연속된 그림 보여주는 함수
"""
def filter2(obj_count, count = 5):
labels = train_multi_labels.sum(axis = 1)
idx = np.argwhere(labels == obj_count)[:count, 0]
imgs = train_multi_images[idx][
...,
0].transpose(1, 0, 2).reshape(56, -1)
plt.imshow(imgs)
plt.show()
filter2(1, 5)
모델링
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
from keras.layers import Input, Conv2D, MaxPool2D, Dropout, Dense, Flatten
from keras.models import Model
def single_fashon_mnist_model():
inputs = Input(shape = (56, 56, 1))
x = Conv2D(filters = 16,
kernel_size = 2,
padding = 'same',
activation = 'relu')(inputs)
x = MaxPool2D(pool_size = 2)(x)
x = Dropout(0.3)(x)
x = Conv2D(filters = 32,
kernel_size = 2,
padding = 'same',
activation = 'relu')(x)
x = MaxPool2D(pool_size = 2)(x)
x = Dropout(0.3)(x)
x = Conv2D(filters = 64,
kernel_szize = 2,
padding = 'same',
activation = 'relu')(x)
x = Flatten()(x)
"""
x = GlobalAvgPool2D()(x)
요즘엔 Flatten 대신 이걸 더 많이 사용한다고 하는데 여기서는 성능이 더 떨어져 Flatten 사용
"""
x = Dense(units = 10, activation = 'softmax')(x)
return (Model(inputs, x))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
model = single_fashon_mnist_model()
model.summary()
"""
Model: "model"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_1 (InputLayer) [(None, 56, 56, 1)] 0
conv2d (Conv2D) (None, 56, 56, 16) 80
max_pooling2d (MaxPooling2 (None, 28, 28, 16) 0
D)
dropout (Dropout) (None, 28, 28, 16) 0
conv2d_1 (Conv2D) (None, 28, 28, 32) 2080
max_pooling2d_1 (MaxPoolin (None, 14, 14, 32) 0
g2D)
dropout_1 (Dropout) (None, 14, 14, 32) 0
conv2d_2 (Conv2D) (None, 14, 14, 64) 8256
max_pooling2d_2 (MaxPoolin (None, 7, 7, 64) 0
g2D)
flatten (Flatten) (None, 3136) 0
dense (Dense) (None, 10) 31370
=================================================================
Total params: 41786 (163.23 KB)
Trainable params: 41786 (163.23 KB)
Non-trainable params: 0 (0.00 Byte)
_________________________________________________________________
"""
1
2
3
model.compile(loss = 'categorical_crossentropy',
optimizer = 'adam',
metrics = ['accuracy'])
1
2
3
4
5
6
7
8
9
10
11
hist = model.fit(
train_expand_images.reshape(-1, 56, 56, 1),
keras.utils.to_categorical(train_labels, 10),
validation_data = (
test_expand_images.reshape(-1, 56, 56, 1),
keras.utils.to_categorical(test_labels, 10)
),
epochs = 15,
verbose = 1
)
1
2
3
res = mode.predict(test_expand_images[1].reshape(1, 56, 56, 1))
print(res.argmax()) # 2
print(test_labels[1]) # 2
1
2
plt.bar(range(10), keras.utils_tocategorical(test_labels[1], 10))
plt.bar(np.array(range(10)) + 0.1, res[0])
Multi label modeling
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
"""
Model: "model"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_1 (InputLayer) [(None, 56, 56, 1)] 0
conv2d (Conv2D) (None, 56, 56, 16) 80
max_pooling2d (MaxPooling2 (None, 28, 28, 16) 0
D)
dropout (Dropout) (None, 28, 28, 16) 0
conv2d_1 (Conv2D) (None, 28, 28, 32) 2080
max_pooling2d_1 (MaxPoolin (None, 14, 14, 32) 0
g2D)
dropout_1 (Dropout) (None, 14, 14, 32) 0
conv2d_2 (Conv2D) (None, 14, 14, 64) 8256
max_pooling2d_2 (MaxPoolin (None, 7, 7, 64) 0
g2D)
flatten (Flatten) (None, 3136) 0
dense (Dense) (None, 10) 31370
=================================================================
Total params: 41786 (163.23 KB)
Trainable params: 41786 (163.23 KB)
Non-trainable params: 0 (0.00 Byte)
_________________________________________________________________
"""
def multi_fashion_mnist_model(model:Model) -> Model:
model.trainable = False # 필터 학습 X
x = model.layers[-2].output # flatten 부분 인터셉트
# 각각의 슬롯의 확률을 구하기 위해 sigmoid 사용(softmax는 하나만 부각)
x = Dense(10, activation = 'sigmoid')(x)
return Model(model.input, x)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
new_model = multi_fashion_mnist_model(model)
new_model.summary()
"""
Model: "model_2"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_1 (InputLayer) [(None, 56, 56, 1)] 0
conv2d (Conv2D) (None, 56, 56, 16) 80
max_pooling2d (MaxPooling2 (None, 28, 28, 16) 0
D)
dropout (Dropout) (None, 28, 28, 16) 0
conv2d_1 (Conv2D) (None, 28, 28, 32) 2080
max_pooling2d_1 (MaxPoolin (None, 14, 14, 32) 0
g2D)
dropout_1 (Dropout) (None, 14, 14, 32) 0
conv2d_2 (Conv2D) (None, 14, 14, 64) 8256
max_pooling2d_2 (MaxPoolin (None, 7, 7, 64) 0
g2D)
flatten (Flatten) (None, 3136) 0
dense_2 (Dense) (None, 10) 31370
=================================================================
Total params: 41786 (163.23 KB)
Trainable params: 31370 (122.54 KB)
Non-trainable params: 10416 (40.69 KB)
_________________________________________________________________
"""
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
new_model.compile(
loss = 'binary_crossentropy',
optimizer = 'adam',
metrics = ['accuracy'])
new_hist = new_model.fit(
train_multi_images,
train_multi_labels,
validation_data = (
test_multi_images,
test_multi_labels
),
epochs = 15,
verbose = 1
)
epoch 마다 랜덤 데이터 생성하여 학습시키는 법
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
epochs = 15
batch_size = 32
new_model.compile(loss = 'binary_crossentropy',
optimizer = 'adam',
metrics = ['accuracy'])
for epoch in range(epochs):
for _ in range(0, len(train_images), batch_size):
batch_x = []
batch_y = []
for _ in range(batch_size):
x, y = expanded_4times2(train_images, train_labels),
batch_x.append(x)
batch_y.append(y)
batch_x = np.array(batch_x).reshape(-1, 56, 56, 1)
batch_y = np.array(batch_y).reshape(-1, 10)
new_model.train_on_batch(batch_x, batch_y)
print(epoch, 'epoch')
This post is licensed under CC BY 4.0 by the author.
