DeepLearning Distributed Processing Test
본 프로젝트는 모델을 세분화하여 여러 저사양 MCU 장치에서 딥러닝 분산처리 테스트를 진행하기 전 증명 과정 단계임.
데이터셋 준비 및 전처리
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
import keras
import numpy as np
import tensorflow as tf
from PIL import Image
import numpy as np
import matplotlib.pyplot as plt
from keras.utils import to_categorical
mnist = keras.datasets.mnist
(train_images, train_labels), (test_images, test_labels) = mnist.load_data()
train_images = train_images + np.random.normal(0.5, 0.1, train_images.shape)
train_images[train_images > 1.0] = 1.0
train_images = train_images / train_images.max()
print(train_images.shape)
train_images = np.expand_dims(train_images, axis=-1)
print(train_images.shape)
print(train_images.max())
print(train_images.min())
test_images = test_images + np.random.normal(0.5, 0.1, test_images.shape)
test_images[test_images > 1.0] = 1.0
test_images = test_images / test_images.max()
print(test_images.shape)
test_images = np.expand_dims(test_images, axis=-1)
print(test_images.shape)
train_labels = to_categorical(train_labels, 10)
test_labels = to_categorical(test_labels, 10)
print(train_labels.shape)
train_labels = np.expand_dims(train_labels, axis=1)
print(train_labels.shape)
print(test_labels.shape)
test_labels = np.expand_dims(test_labels, axis=1)
print(test_labels.shape)
"""
(60000, 10)
(60000, 1, 10)
(10000, 10)
(10000, 1, 10)
"""
데이터 확인
1
2
3
4
5
6
7
8
9
10
11
print(train_labels[2])
plt.imshow(train_images[2])
plt.axis('off')
plt.show()
print(train_images[2].max())
print(train_images[2].min())
"""
[[0. 0. 0. 0. 1. 0. 0. 0. 0. 0.]]
"""
모델 생성
모델 학습 후 각 함수단위로 모델을 쪼개어 개별 장비에 탑재
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
from keras.models import Model
from keras.layers import Conv2D, MaxPool2D, Input, Dense, Flatten, Activation, BatchNormalization
def Layer_1(inputs): # 장치 1
x = Conv2D(3, strides=2 ,kernel_size=1, padding='SAME')(inputs)
x = Conv2D(6, strides=1, kernel_size=3, padding='SAME')(x)
x = BatchNormalization()(x)
x = Activation('ReLU')(x)
x = Conv2D(9, strides=2, kernel_size=1, padding='SAME')(x) # 14
x = Conv2D(12, strides=1, kernel_size=3, padding='SAME')(x)
x = BatchNormalization()(x)
x = Activation('ReLU')(x)
return x
def Layer_2(inputs): # 장치 2
x = Conv2D(15, strides=1 ,kernel_size=1, padding='SAME')(inputs)
x = Conv2D(18, strides=1 ,kernel_size=3, padding='SAME')(x)
x = BatchNormalization()(x)
x = Activation('ReLU')(x)
x = Conv2D(21, strides=2 ,kernel_size=1, padding='SAME')(x) # 7, 7
x = Conv2D(24, strides=1 ,kernel_size=3, padding='SAME')(x) # 7, 7
x = BatchNormalization()(x)
x = Activation('ReLU')(x)
return x
def Layer_3(inputs): # 장치 3
x = Conv2D(27, strides=2 ,kernel_size=3, padding='SAME')(inputs) # 3
x = Conv2D(10, strides=2 ,kernel_size=3, padding='SAME')(x) # 1
return tf.keras.layers.Reshape((-1, 10))(x)
def just_train_model(): # 학습용
inputs = Input(shape=(28, 28, 1))
layer1_feature = Layer_1(inputs)
layer2_feature = Layer_2(layer1_feature)
layer3_output = Layer_3(layer2_feature)
model = tf.keras.Model(inputs, layer3_output)
return model
model = just_train_model()
model.trainable = True
model.build(input_shape=(None, 24, 24, 1))
model.summary()
"""
Model: "model_5"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_5 (InputLayer) [(None, 28, 28, 1)] 0
conv2d_20 (Conv2D) (None, 14, 14, 3) 6
conv2d_21 (Conv2D) (None, 14, 14, 6) 168
batch_normalization_8 (Bat (None, 14, 14, 6) 24
chNormalization)
activation_8 (Activation) (None, 14, 14, 6) 0
conv2d_22 (Conv2D) (None, 7, 7, 9) 63
conv2d_23 (Conv2D) (None, 7, 7, 12) 984
batch_normalization_9 (Bat (None, 7, 7, 12) 48
chNormalization)
activation_9 (Activation) (None, 7, 7, 12) 0
conv2d_24 (Conv2D) (None, 7, 7, 15) 195
conv2d_25 (Conv2D) (None, 7, 7, 18) 2448
batch_normalization_10 (Ba (None, 7, 7, 18) 72
tchNormalization)
activation_10 (Activation) (None, 7, 7, 18) 0
conv2d_26 (Conv2D) (None, 4, 4, 21) 399
conv2d_27 (Conv2D) (None, 4, 4, 24) 4560
batch_normalization_11 (Ba (None, 4, 4, 24) 96
tchNormalization)
activation_11 (Activation) (None, 4, 4, 24) 0
conv2d_28 (Conv2D) (None, 2, 2, 27) 5859
conv2d_29 (Conv2D) (None, 1, 1, 10) 2440
reshape_2 (Reshape) (None, 1, 10) 0
=================================================================
Total params: 17362 (67.82 KB)
Trainable params: 17242 (67.35 KB)
Non-trainable params: 120 (480.00 Byte)
_________________________________________________________________
"""
모델 컴파일 및 학습
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
from tensorflow.keras.optimizers import Adam
initial_learning_rate = 0.0001
optimizer = Adam(learning_rate=initial_learning_rate, clipnorm=1.0) #0.25
model.compile(loss = tf.keras.losses.CategoricalCrossentropy(from_logits=True),
optimizer = optimizer,
metrics = ['accuracy'])
model.fit(
train_images,
train_labels,
validation_data = (
test_images,
test_labels
),
epochs = 10,
batch_size = 128,
verbose = 1
)
"""
Epoch 1/10
2024-07-18 14:14:27.409730: I tensorflow/compiler/xla/stream_executor/cuda/cuda_dnn.cc:442] Loaded cuDNN version 8700
2024-07-18 14:14:28.675514: I tensorflow/compiler/xla/service/service.cc:168] XLA service 0x7f79e536a000 initialized for platform CUDA (this does not guarantee that XLA will be used). Devices:
2024-07-18 14:14:28.675542: I tensorflow/compiler/xla/service/service.cc:176] StreamExecutor device (0): NVIDIA GeForce RTX 3090, Compute Capability 8.6
2024-07-18 14:14:28.679782: I tensorflow/compiler/mlir/tensorflow/utils/dump_mlir_util.cc:269] disabling MLIR crash reproducer, set env var `MLIR_CRASH_REPRODUCER_DIRECTORY` to enable.
2024-07-18 14:14:28.821083: I ./tensorflow/compiler/jit/device_compiler.h:186] Compiled cluster using XLA! This line is logged at most once for the lifetime of the process.
469/469 [==============================] - 15s 18ms/step - loss: 1.4509 - accuracy: 0.5432 - val_loss: 0.7841 - val_accuracy: 0.7676
Epoch 2/10
469/469 [==============================] - 7s 15ms/step - loss: 0.5968 - accuracy: 0.8182 - val_loss: 0.4575 - val_accuracy: 0.8612
Epoch 3/10
469/469 [==============================] - 7s 15ms/step - loss: 0.4114 - accuracy: 0.8716 - val_loss: 0.3508 - val_accuracy: 0.8925
Epoch 4/10
469/469 [==============================] - 7s 15ms/step - loss: 0.3309 - accuracy: 0.8966 - val_loss: 0.2908 - val_accuracy: 0.9099
Epoch 5/10
469/469 [==============================] - 7s 15ms/step - loss: 0.2818 - accuracy: 0.9113 - val_loss: 0.2567 - val_accuracy: 0.9191
Epoch 6/10
469/469 [==============================] - 7s 15ms/step - loss: 0.2488 - accuracy: 0.9220 - val_loss: 0.2290 - val_accuracy: 0.9274
Epoch 7/10
469/469 [==============================] - 7s 15ms/step - loss: 0.2248 - accuracy: 0.9287 - val_loss: 0.2092 - val_accuracy: 0.9337
Epoch 8/10
469/469 [==============================] - 7s 15ms/step - loss: 0.2063 - accuracy: 0.9346 - val_loss: 0.1970 - val_accuracy: 0.9387
Epoch 9/10
469/469 [==============================] - 7s 15ms/step - loss: 0.1915 - accuracy: 0.9389 - val_loss: 0.1844 - val_accuracy: 0.9414
Epoch 10/10
469/469 [==============================] - 7s 15ms/step - loss: 0.1799 - accuracy: 0.9430 - val_loss: 0.1741 - val_accuracy: 0.9431
"""
결과 확인
1
2
3
4
5
test = model.predict(test_images[2:3])
plt.axis('off')
plt.imshow(test_images[2])
plt.show()
print(np.argmax(test))
모델 분리
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
Layer1 = Model(inputs = model.input,
outputs = model.get_layer('activation_1').output)
Layer2 = Model(inputs = model.get_layer('conv2d_4').input,
outputs = model.get_layer('activation_3').output)
Layer3 = Model(inputs = model.get_layer('conv2d_8').input,
outputs = model.get_layer('reshape').output)
Layer1.summary()
"""
Model: "model_1"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_1 (InputLayer) [(None, 28, 28, 1)] 0
conv2d (Conv2D) (None, 14, 14, 3) 6
conv2d_1 (Conv2D) (None, 14, 14, 6) 168
batch_normalization (Batch (None, 14, 14, 6) 24
Normalization)
activation (Activation) (None, 14, 14, 6) 0
conv2d_2 (Conv2D) (None, 7, 7, 9) 63
conv2d_3 (Conv2D) (None, 7, 7, 12) 984
batch_normalization_1 (Bat (None, 7, 7, 12) 48
chNormalization)
activation_1 (Activation) (None, 7, 7, 12) 0
=================================================================
Total params: 1293 (5.05 KB)
Trainable params: 1257 (4.91 KB)
Non-trainable params: 36 (144.00 Byte)
_________________________________________________________________
"""
Layer2.summary()
"""
Model: "model_2"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_2 (InputLayer) [(None, 7, 7, 12)] 0
conv2d_4 (Conv2D) (None, 7, 7, 15) 195
conv2d_5 (Conv2D) (None, 7, 7, 18) 2448
batch_normalization_2 (Bat (None, 7, 7, 18) 72
chNormalization)
activation_2 (Activation) (None, 7, 7, 18) 0
conv2d_6 (Conv2D) (None, 4, 4, 21) 399
conv2d_7 (Conv2D) (None, 4, 4, 24) 4560
batch_normalization_3 (Bat (None, 4, 4, 24) 96
chNormalization)
activation_3 (Activation) (None, 4, 4, 24) 0
=================================================================
Total params: 7770 (30.35 KB)
Trainable params: 7686 (30.02 KB)
Non-trainable params: 84 (336.00 Byte)
_________________________________________________________________
"""
Layer3.summary()
"""
Model: "model_3"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_3 (InputLayer) [(None, 4, 4, 24)] 0
conv2d_8 (Conv2D) (None, 2, 2, 27) 5859
conv2d_9 (Conv2D) (None, 1, 1, 10) 2440
reshape (Reshape) (None, 1, 10) 0
=================================================================
Total params: 8299 (32.42 KB)
Trainable params: 8299 (32.42 KB)
Non-trainable params: 0 (0.00 Byte)
_________________________________________________________________
"""
모델 분산 연산 전 Sequential 테스트
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
layer1_res = Layer1.predict(test_images[501:502])
layer2_res = Layer2.predict(layer1_res)
layer3_res = Layer3.predict(layer2_res)
print("layer1_res:", layer1_res.shape)
print("layer2_res:", layer2_res.shape)
print("layer3_res:", layer3_res.shape)
plt.axis('off')
plt.imshow(test_images[501])
# plt.savefig('./501', bbox_inches='tight', pad_inches=0)
plt.show()
print(np.argmax(layer3_res))
print(test_images[501].max())
print(test_images[501].min())
"""
1/1 [==============================] - 0s 17ms/step
1/1 [==============================] - 0s 17ms/step
1/1 [==============================] - 0s 28ms/step
layer1_res: (1, 7, 7, 12)
layer2_res: (1, 4, 4, 24)
layer3_res: (1, 1, 10)
"""
각 모델 저장
1
2
3
4
5
Layer1.save("Layer1.keras")
Layer2.save("Layer2.keras")
Layer3.save("Layer3.keras")
최종 검증
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
from tensorflow.keras.models import load_model
image_path = '2.png'
img = Image.open(image_path).convert('L')
img = img.resize((28, 28))
img_array = np.array(img).reshape((1, 28, 28, 1))
print(img_array.shape)
img_array = img_array.astype('float32') / 255.0
print(img_array.max())
print(img_array.min())
Layer1 = load_model('Layer1.keras')
Layer2 = load_model('Layer2.keras')
Layer3 = load_model('Layer3.keras')
layer1_res = Layer1.predict(img_array)
layer2_res = Layer2.predict(layer1_res)
layer3_res = Layer3.predict(layer2_res)
print("layer1_res:", layer1_res.shape)
print("layer2_res:", layer2_res.shape)
print("layer3_res:", layer3_res.shape)
print(np.argmax(layer3_res))
plt.axis('off')
plt.imshow(img_array[0])
plt.show()
"""
(1, 28, 28, 1)
0.8509804
0.105882354
1/1 [==============================] - 0s 61ms/step
1/1 [==============================] - 0s 61ms/step
1/1 [==============================] - 0s 42ms/step
layer1_res: (1, 7, 7, 12)
layer2_res: (1, 4, 4, 24)
layer3_res: (1, 1, 10)
2
"""
장치 1 서버 구현(Layer1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
from flask import Flask, request, jsonify
import requests
import tensorflow as tf
from tensorflow.keras.models import load_model
import numpy as np
import io
app = Flask(__name__)
model = load_model('Layer1.keras')
def predict_image(img_array):
predictions = model.predict(img_array)
return predictions
@app.route('/Layer1', methods=['POST'])
def layer1_predict():
if 'file' not in request.files:
return jsonify({'error': 'No file part'}), 400
file = request.files['file']
if file.filename == '':
return jsonify({'error': 'No selected file'}), 400
try:
img_bytes = io.BytesIO(file.read())
img_array = np.load(img_bytes).reshape((1, 28, 28, 1))
predictions = predict_image(img_array)
result = predictions.tolist()
except Exception as e:
return jsonify({'error': str(e)}), 500
target_ip = 'http://127.0.0.1:7000/Layer2'
try:
response = requests.post(target_ip, json={'predictions': result})
response.raise_for_status()
response.headers['Cache-Control'] = 'no-cache, no-store, must-revalidate'
response.headers['Pragma'] = 'no-cache'
response.headers['Expires'] = '0'
layer2_response = response.json()['predictions']
print(layer2_response)
except requests.exceptions.RequestException as e:
return jsonify({'error': f'Failed to send data to {target_ip}: {str(e)}'}), 500
return jsonify({'predictions': layer2_response})
if __name__ == '__main__':
app.run(host='0.0.0.0', port=6000)
장치 2 서버 구현(Layer2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
from flask import Flask, request, jsonify
import tensorflow as tf
import requests
from tensorflow.keras.models import load_model
import numpy as np
import io
app = Flask(__name__)
model = load_model('Layer2.keras')
def predict_layer2(layer1_data):
layer1_data = np.array(layer1_data)
predictions = model.predict(layer1_data)
return predictions
@app.route('/Layer2', methods=['POST'])
def layer2_predict():
data = request.get_json()
if 'predictions' not in data:
return jsonify({'error': 'No predictions data'}), 400
try:
layer1_data = data['predictions']
predictions = predict_layer2(layer1_data)
result = predictions.tolist()
except Exception as e:
return jsonify({'error': str(e)}), 500
target_ip = 'http://127.0.0.1:8000/Layer3'
try:
response = requests.post(target_ip, json={'predictions': result})
response.raise_for_status()
response.headers['Cache-Control'] = 'no-cache, no-store, must-revalidate'
response.headers['Pragma'] = 'no-cache'
response.headers['Expires'] = '0'
layer3_response = response.json()['predictions']
print(layer3_response)
except requests.exceptions.RequestException as e:
return jsonify({'error': f'Failed to send data to {target_ip}: {str(e)}'}), 500
return jsonify({'predictions': layer3_response})
if __name__ == '__main__':
app.run(host='0.0.0.0', port=7000)
장치 3 서버 구현(Layer3 - Result)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
from flask import Flask, request, jsonify
import tensorflow as tf
from tensorflow.keras.models import load_model
import numpy as np
app = Flask(__name__)
model = load_model('Layer3.keras')
def predict_layer3(layer2_data):
layer2_data = np.array(layer2_data)
predictions = model.predict(layer2_data)
return predictions
@app.route('/Layer3', methods=['POST'])
def layer2_predict():
data = request.get_json()
if 'predictions' not in data:
return jsonify({'error': 'No predictions data'}), 400
try:
layer2_data = data['predictions']
predictions = predict_layer3(layer2_data)
result = np.argmax(predictions).tolist()
except Exception as e:
return jsonify({'error': str(e)}), 500
print(result)
return jsonify({'predictions': result})
if __name__ == '__main__':
app.run(host='0.0.0.0', port=8000)
결과
유저 이미지 전송 -> 장치 1 (Layer 1 연산 후 결과값 장치 2에 전송 ) -> 장치 2 -> 장치 3 (결과를 장치2 -> 장치1 -> 유저에게 반환)
유저 이미지 전송

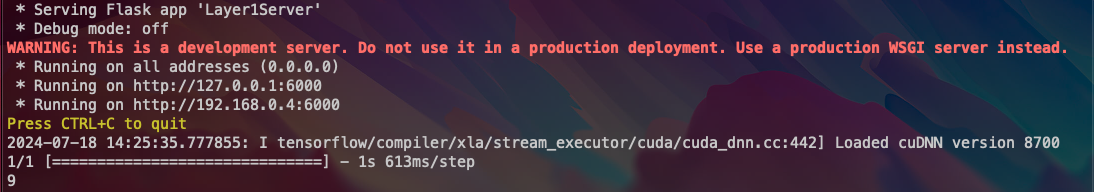

장치 1

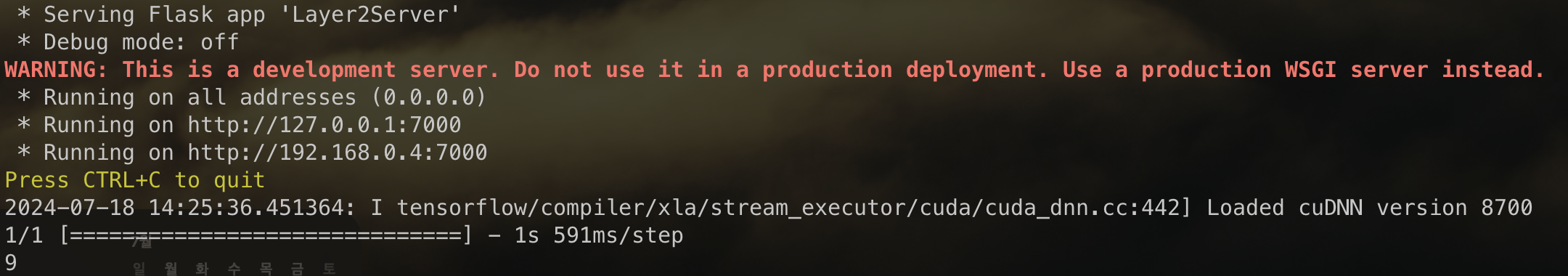

장치 2

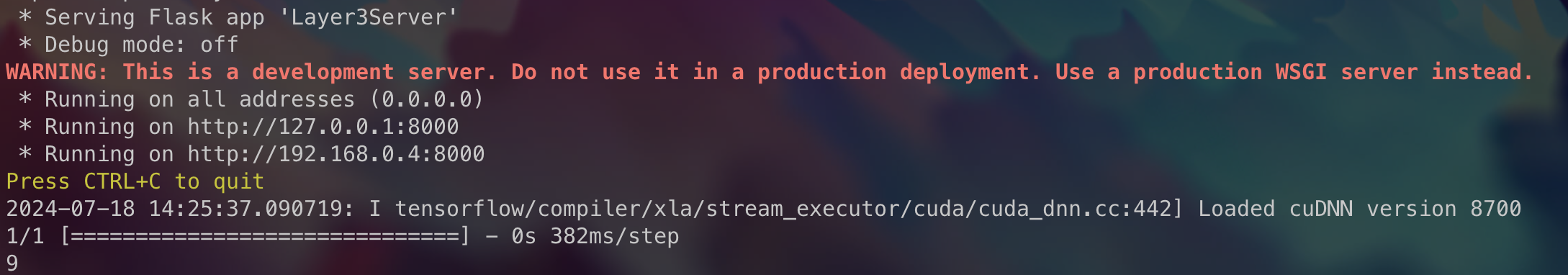

장치 3

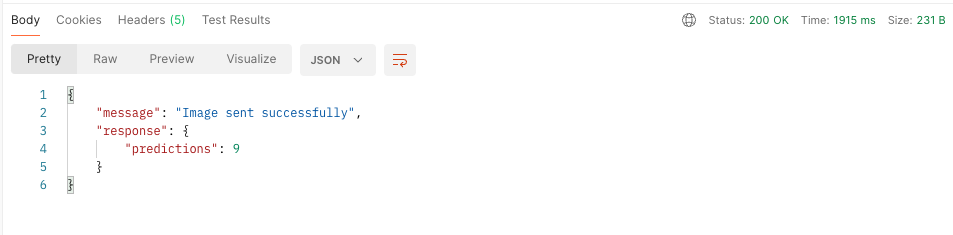

유저 결과값 확인
This post is licensed under CC BY 4.0 by the author.
